Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF



Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

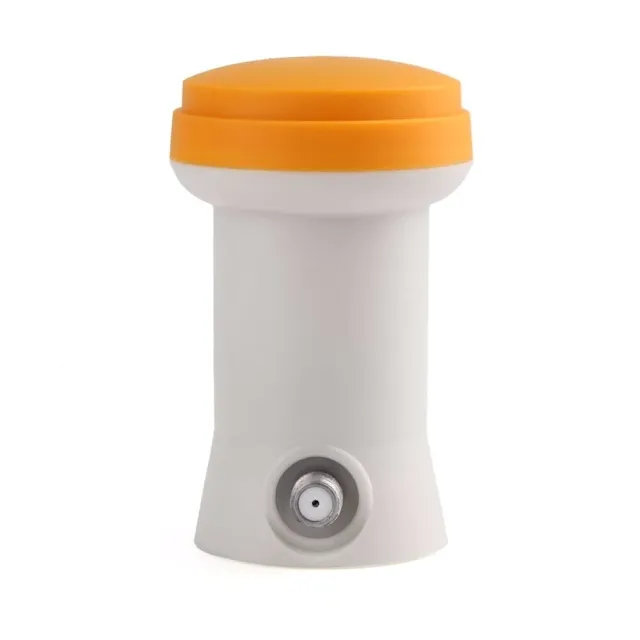

Universal Ku-Band Single LNBF 9.75/10.6KU Dual Output Full HD Digital KU LNB

Satellite Receiver High Band Low Band



Features:

Mininum output power 0dBm (at 1dB gain compression)


Mininum Image Rejection 40dB


Input: 10.7-12.75GHZ


L.O.: 9.75/10.6GHZ


Noise: 0.3dB


Gain: 60dB

Descriptions:

Support Low/High band switching


Satellite universal single LNBF


Single Ku Band


Full HD Digital KU-BAND


9.75/10.6 Dual output

Specifications:


Input Frequency Range: Low Band:10.70~11.70GHz / High Band:11.70~12.75GHz


Output Frequency Range: Low Band:950~1950MHz / High Band:1100~2150MHz


Noise Figure: Low Band: 0.6dB(Typ.) / High Band:0.6dB(Typ.)


Conversion Gain: 60dB(Typ.)


Gain Flatness: ±0.5dB/26MHz


Cross POL. Isolation: 25dB(Typ.)


L.O. Frequency: Low Band: 9.75GHz / High Band: 10.60GHz


L.O. Frequency Stability: ±1.0MHz (Max.)@+25° / ±2.0 MHz (Max.)@-30°~+70°


L.O. Phase Noise: -50dBc/Hz@1KHz & -75dBc/Hz@10KHz & -95dBc/Hz@100KHz


Image Rejection: 40dB(Min.)


Output VSWR: 2.0:1(Max.)


Output Power: 0dBm (Min.)(at 1dB gain compression)


Connector Type: 75Ω Female Connector


DC Current Consumption: 80mA(Typ.)


Low/High Band Switching: Low Band:0Hz / High Band:22KHz±4KHz


POL. Switching Voltage: 10.5~14.0V @VP / 16.0~20.0V @HP


Package included:


1 x Satellite Receiver

Product  Pictures:



Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF

Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF


SKU详情展示界面

SKU:
SKU:ZN273901
缩略图:

质检标准
所属分类目消费类电子->家庭音频/视频设备->卫星电视接收器
开发序列号SMT170905162
开发链接送样
状态正常销售
SKU采购名称:9.75/10.6KU双输出高频头白色
英语名称:
(≤78个字符)
Universal Ku-Band Single LNBF 9.75/10.6KU Dual Output HD Satellite Receiver
速卖通英文名称:
(≤126个字符)
Universal Ku-Band Single LNBF 9.75/10.6KU Dual Output Full HD Digital KU LNB Satellite Receiver High Band Low Band
速卖通最佳LISTING:
此Listing 最近28天销量:0
EBAY最佳LISTING:
长:50.0000mm
宽:50.0000mm
高:85.0000mm
长(包装后的):0.0000
宽(包装后的):0.0000
高(包装后的):0.0000
sku物流属性:102
海关编码:9030401000
税率:
成本价:10.0000¥
重量:56.0000g
重量(包装后的):72.0000g
储位:
采购开发:邵志平
采购跟单:
产品属性:
  • Model Number :none
  • High Definition :Yes
  • Package :Yes
  • Brand Name :None
  • FTA(Free To Air) :No
  • Type :Digital
产品多属性信息:Color:White
产品信息:

   Features:
Mininum output power 0dBm (at 1dB gain compression)
Mininum Image Rejection 40dB
Input: 10.7-12.75GHZ
L.O.: 9.75/10.6GHZ
Noise: 0.3dB
Gain: 60dB

Descriptions:
Support Low/High band switching
Satellite universal single LNBF
Single Ku Band
Full HD Digital KU-BAND
9.75/10.6 Dual output

Specifications:
Input Frequency Range: Low Band:10.70~11.70GHz / High Band:11.70~12.75GHz
Output Frequency Range: Low Band:950~1950MHz / High Band:1100~2150MHz
Noise Figure: Low Band: 0.6dB(Typ.) / High Band:0.6dB(Typ.)
Conversion Gain: 60dB(Typ.)
Gain Flatness: ±0.5dB/26MHz
Cross POL. Isolation: 25dB(Typ.)
L.O. Frequency: Low Band: 9.75GHz / High Band: 10.60GHz
L.O. Frequency Stability: ±1.0MHz (Max.)@+25° / ±2.0 MHz (Max.)@-30°~+70°
L.O. Phase Noise: -50dBc/Hz@1KHz & -75dBc/Hz@10KHz & -95dBc/Hz@100KHz
Image Rejection: 40dB(Min.)
Output VSWR: 2.0:1(Max.)
Output Power: 0dBm (Min.)(at 1dB gain compression)
Connector Type: 75Ω Female Connector
DC Current Consumption: 80mA(Typ.)
Low/High Band Switching: Low Band:0Hz / High Band:22KHz±4KHz
POL. Switching Voltage: 10.5~14.0V @VP / 16.0~20.0V @HP

Package included:
1 x Satellite Receiver

SKU详情展示界面

SKU:
SKU:ZN273901
缩略图:

质检标准
所属分类目消费类电子->家庭音频/视频设备->卫星电视接收器
开发序列号SMT170905162
开发链接送样
状态正常销售
SKU采购名称:9.75/10.6KU双输出高频头白色
英语名称:
(≤78个字符)
Universal Ku-Band Single LNBF 9.75/10.6KU Dual Output HD Satellite Receiver
速卖通英文名称:
(≤126个字符)
Universal Ku-Band Single LNBF 9.75/10.6KU Dual Output Full HD Digital KU LNB Satellite Receiver High Band Low Band
速卖通最佳LISTING:
此Listing 最近28天销量:0
EBAY最佳LISTING:
长:50.0000mm
宽:50.0000mm
高:85.0000mm
长(包装后的):0.0000
宽(包装后的):0.0000
高(包装后的):0.0000
sku物流属性:102
海关编码:9030401000
税率:
成本价:10.0000¥
重量:56.0000g
重量(包装后的):72.0000g
储位:
采购开发:邵志平
采购跟单:
产品属性:
  • Model Number :none
  • High Definition :Yes
  • Package :Yes
  • Brand Name :None
  • FTA(Free To Air) :No
  • Type :Digital
产品多属性信息:Color:White
产品信息:

   Features:
Mininum output power 0dBm (at 1dB gain compression)
Mininum Image Rejection 40dB
Input: 10.7-12.75GHZ
L.O.: 9.75/10.6GHZ
Noise: 0.3dB
Gain: 60dB

Descriptions:
Support Low/High band switching
Satellite universal single LNBF
Single Ku Band
Full HD Digital KU-BAND
9.75/10.6 Dual output

Specifications:
Input Frequency Range: Low Band:10.70~11.70GHz / High Band:11.70~12.75GHz
Output Frequency Range: Low Band:950~1950MHz / High Band:1100~2150MHz
Noise Figure: Low Band: 0.6dB(Typ.) / High Band:0.6dB(Typ.)
Conversion Gain: 60dB(Typ.)
Gain Flatness: ±0.5dB/26MHz
Cross POL. Isolation: 25dB(Typ.)
L.O. Frequency: Low Band: 9.75GHz / High Band: 10.60GHz
L.O. Frequency Stability: ±1.0MHz (Max.)@+25° / ±2.0 MHz (Max.)@-30°~+70°
L.O. Phase Noise: -50dBc/Hz@1KHz & -75dBc/Hz@10KHz & -95dBc/Hz@100KHz
Image Rejection: 40dB(Min.)
Output VSWR: 2.0:1(Max.)
Output Power: 0dBm (Min.)(at 1dB gain compression)
Connector Type: 75Ω Female Connector
DC Current Consumption: 80mA(Typ.)
Low/High Band Switching: Low Band:0Hz / High Band:22KHz±4KHz
POL. Switching Voltage: 10.5~14.0V @VP / 16.0~20.0V @HP

Package included:
1 x Satellite Receiver


Hight quality Full HD DIGITAL KU-BAND Universal Single LNB Satellite LNB satellite receiver lnb 9.75/10.6KU ku lnb 1 Output LNBF
